Corrosion Measurement Electrode for Oil And Gas Transportation Pipelines

Ag/AgCl electrode as the reference electrode are installed near buried pipelines and they are electrically connected to the pipelines through test points. AC and DC pipeline/soil potential and electrical current measurements are very important to predict the pipeline external corrosion processes.

Application:

underground pipeline corrosion measurement

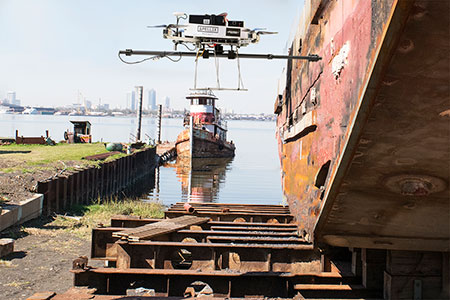

sea hull bottom corrosion measurement

reference electrode maintains stability in dry desert soils and high moisture soils. Freezing does not affect the efficiency of the reference electrode.

Specification:

Composition: Ag/AgCl

DC offset:<150 μV

Drift:<25μv/h

Electrode impedance:≤25Ω.cm²(10Hz)

Noise:Max≤1μv

Custom made for specific requirements

Work principle:

work environment:
