Brand Name : | BESDATA |
Model Number : | DES100 |
Certification : | ISO13485 / CE |
Price : | negotiable |
Payment Terms : | D/P, D/A, T/T, Western Union, MoneyGram, L/C |
Supply Ability : | 10000/m |

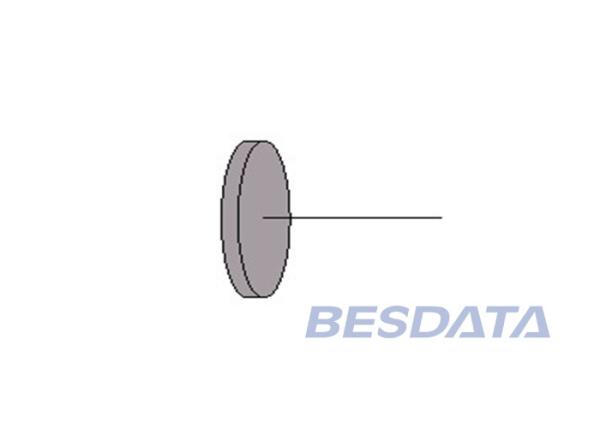

8/10mm Sintered Silver/Silver Chloride Electrodes Low Frequency Noise, Less Offset, Less Polarization
Feature:
1, Silver-Silver Chloride (Ag-AgCl) is recognized worldwide as a stable, low noise reference electrode sensors, and it’s known for its low offset voltage, low noise and stability.
2, Besdata Pellet & Disc Sintered Ag-AgCl electrode sensors are
made through a process that results in a fine grain, homogeneous
mixture of Silver-Silver Chloride compressed and sintered to
strengthen and stabilize the electrode.
3, Besdata Pellet & Disc Sintered Ag-AgCl electrode sensors can be
re-shaped by sanding, cutting, drilling and filing. Designed for
use in electrochemistry, stimulation, precision bioelectric
recording and electrophysiology.
Please contact us anytime
– Available to customize the specifications (design, size, package
etc.) of the pellet & disc electrodes
– Reliable to develop and manufacture the custom-made products
through OEM & ODM
Specifications | Pure Ag/AgCl powder (silver chloride) |
Electrode AC Impedance: ≤25Ω·cm²(10Hz) | |
DC offset: <150 μV | |
Potential Drift: <25 μV/h | |
Noise: <1 μV(1h) | |
Resistance:≤ 5Ω | |
Biocompatibility: non-toxic, non-irritating, non-sensitizing |
Product Number | Type | Sensor Diameter | Sensor Length | Exposed Wire |
(mm) | (mm) | (mm) | ||
DES40 | Disk Electrode | 40 | 1 | 70 |
DES60 | Disk Electrode | 60 | 1 | 70 |
DES80 | Disk Electrode | 80 | 1 | 70 |
DES85 | Disk Electrode | 85 | 1 | 70 |
DES100 | Disk Electrode | 100 | 1 | 70 |
![]() |
